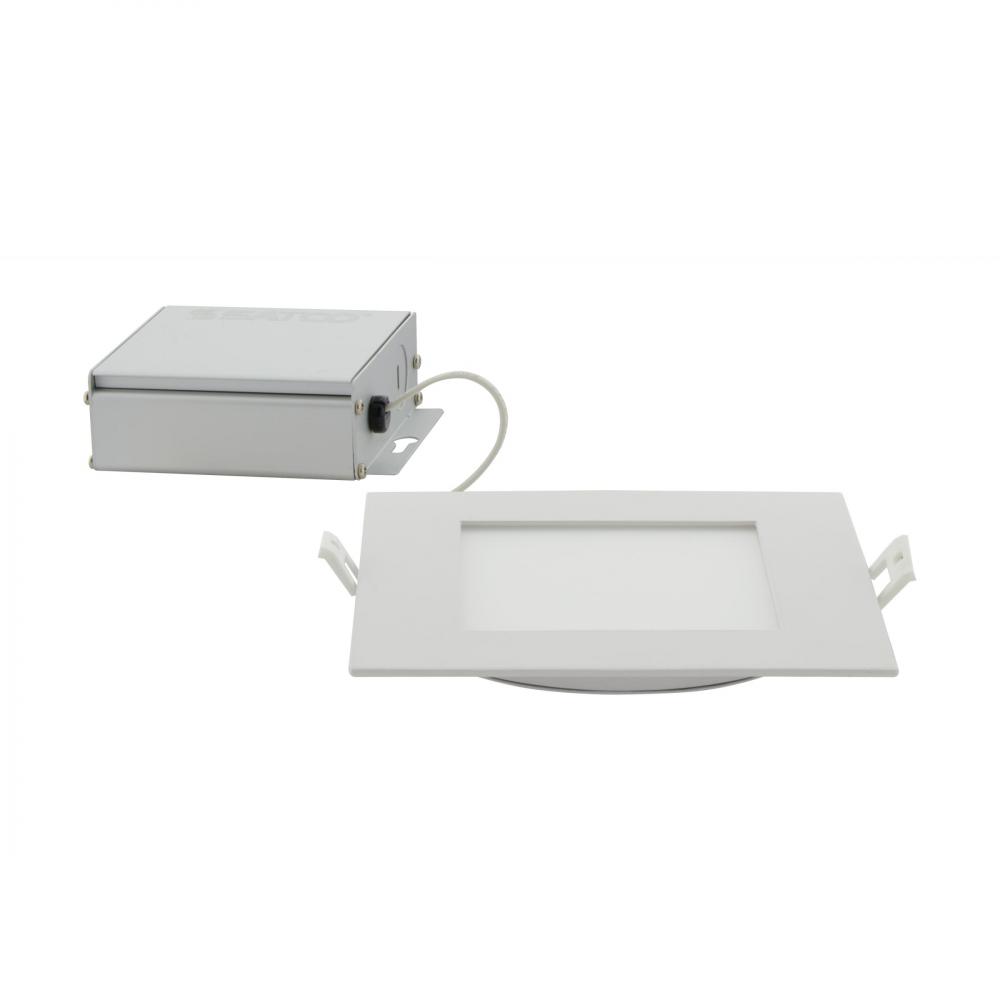

12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Square; (S11830) by Satco Products Inc.
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
25
01
/
/ 1
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S11830
Dimensions:
Height: 0.90"
Width: 6.69"
White
Availability:
- Manufacturer has 826 items available.
Recommended Items
Bulbs: (1) x Integrated
Searching...
Description
Details
Downloads
12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Square; Remote Driver
Internal #:
X3HFE
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Style:
Traditional
Option:
LED
, Prop 65
Lumens:
450-800
Kelvin:
4001-4500
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Additional Info:
Candlepower: 290
Bulb Hours:
50000
Bulb Kelvin:
Warm to Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.10.8010
Length:
6.69
Lumens:
750L
Ship Carton Height:
7.13
Ship Carton Length:
8.74
Ship Carton Width:
2.13
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.100A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
108
CA Prop-65:
Lead
Can Size:
6 in.
Candle Power:
290
Carton Cubic Feet:
0.07679999999999999
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
6.18 in. Cutout
Clearance Height:
2
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Reverse Phase or Phase Selectable
Efficacy:
62.50 LPW
FCC Compliant:
Yes
Feature 1:
ColorQuick CCT Selectable
Feature 2:
90 CRI
Feature 3:
Wet Location Rated
Feature 4:
Dimmable
Feature 5:
IC Rated
Feature 6:
Air Tight Rated
Feature 7:
Title 24 Compliant
Feature 8:
108-Degree Beam Angle
Feature 9:
120V
Finish Family:
White
Fixture shape:
Square
Has Driver:
Yes
IC Rated:
Yes
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor
Installation Notes:
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO NUVO's S11830 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light.
Material:
Aluminum
Max Drywall Thickness:
1/2 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
65
Rec Spacing Between Fixtures:
4 ft. to 6 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A va
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
12WLED/DW/EL/6/CCT-SEL/SQ/RD
Sloped Ceiling Compatible:
No
Specification Notes:
Lumens (L) vary with color temperature (K): 2700K 700L / 3000K 720L / 3500K 760L / 4000K 760L / 5000K 750L
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
White
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
1.16
Manufactured By:
Satco Products Inc.
