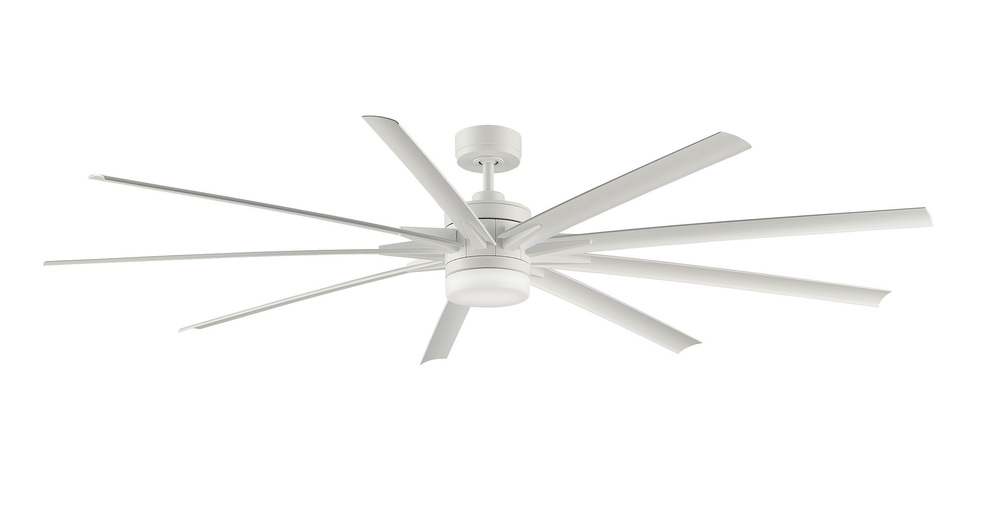

The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Internal #:

G6F4

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Style:

Traditional

Option:

LED

Glass Finish or Style:

Frosted , Opal

Number of Blades:

8 Plus Blades

Category:

Fan-Uni

Finish:

Matte White

Family:

Odyn 84

Glass:

Opal Frosted

Voltage:

240 V

Number of Bulbs:

1 Bulbs

Additional Info:

10,236 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air , ENERGY STAR Most Efficient 2020 , Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included , TR205 handheld remote with CR2032 batteries included

Air Flow CFM:

10104

Air Flow Efficiency:

314

Amperage:

0.46

Blade Finish:

Matte White

Blade Pitch:

Blade Span:

Bulb Type:

18 Watt LED Module

Canopy:

6.46 Dia x 2.58 H

Diameter:

8.27

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

Light Kit Included:

Yes

Lumens / Light Output:

1460

Material:

Composite

Motor Fan Speed:

Motor RPM:

Motor Size:

DC-165L

Motor Type:

Remote Control Included:

TR39ND-220

Ship Carton Height:

12.87

Ship Carton Length:

40.08

Ship Carton Width:

10.47

Ship Weight:

35.92

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

32.15

Airflow Efficiency Low:

834

Airflow Efficiency Medium:

535

Airflow Efficiency Medium High:

410

Airflow Efficiency Medium Low:

662

Airflow Efficiency Mini:

998

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

6.46 Dia

Canopy Height:

2.58 H

Cap Included:

Carton Cubic Feet:

3.13

Cartons Per Unit:

Case Height:

12.87

Case Length:

40.08

Case Quantity:

Case Weight Pounds:

35.92

Case Width:

10.47

CEC Uploaded:

Ceiling To Blade Edge:

11.72

Ceiling To Bottom:

15.14 , 16.52

CFM Low:

5645

CFM Medium:

7923

CFM Medium High:

8994

CFM Medium Low:

6682

CFM Mini:

4453

Compatible Accessories:

DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCB1-52

Country of Origin:

China

CRI:

Current Draw High:

0.46

Current Draw Low:

0.11

Current Draw Medium:

0.23

Current Draw Medium High:

0.33

Current Draw Medium Low:

0.16

Current Draw Mini:

0.08

DOE-FTC Uploaded:

DOEFTC Uploaded:

Downrod Length:

Exempt from DOE Procedure:

Yes

Housing Diameter:

8.27

Included Control:

TR39ND-220

Included Control Type:

Handheld

IP Rating:

IP20

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

RPM Low (II):

RPM Medium (IV):

RPM Medium High (V):

RPM Medium Low III:

RPM Mini (I):

RPM Mini I:

Safety Rating:

TUV Rheinland Approved

Voltage Cycles:

50 hz

Watts Low:

Watts Medium:

Watts Medium High:

Watts Medium Low:

Watts Mini:

Watts Per Bulb:

Manufactured By:

Fanimation

Additional Information:

10,236 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air
Energy Star Most Efficient 2020
Set Of (9) 84 Inch Wet Rated Blades And 18 Watt Led Light Kit With Cover And Bulb Included
Tr205 Handheld Remote With Cr2032 Batteries Included
