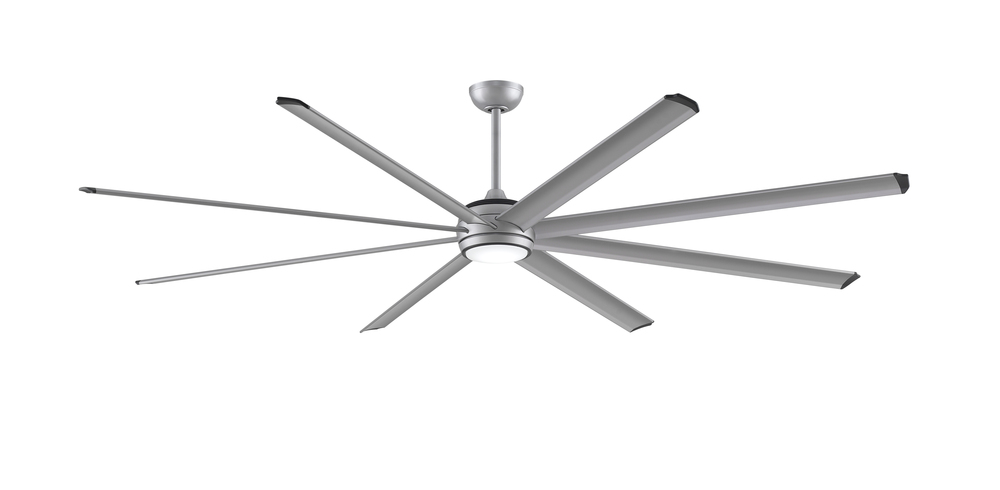

Incredible in size and function, the Fanimation Stellar reigns supreme with swift aluminum blades. Showcasing a full 96 inch blade span, Stellar features an integrated LED with CCT Select Temperature settings light kit, and is safe for use in wet locations. Pick the combination that matches your decor, between black and silver finishes. Stellar features fanSync technology so that users may control various fan functionalities with their the Fanimation fanSync app. *Blades sold separately

Internal #:

G8EC

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Silver

Style:

Traditional

Option:

Wet Rated , LED

Glass Finish or Style:

Frosted , Opal

Number of Blades:

8 Plus Blades

Category:

Fan-Multi

Finish:

Silver

Option:

Wet

Family:

Stellar 96

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

12,965 CFM on High , 18 watt LED light kit with cover and bulb included; Set of 8 Wet Rated blades sold separately , Compatible with most Smart home devices (required controls sold separately) , DC motor with variable speeds, light controls, sleep timer, Fresh Air, Safe Exit, Home Away features , ENERGY STAR Most Efficient 2020 , TR205D handheld remote with CR2032 batteries included

Air Flow CFM:

12965

Air Flow Efficiency:

371

Amperage:

0.55

Blade Pitch:

12.6

Bulb Type:

18 Watt LED Module

Canopy:

6.3 Dia x 2.55 H

Diameter:

9.21

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

Light Kit Included:

Yes

Lumens / Light Output:

1500

Motor Fan Speed:

Motor RPM:

Motor Size:

153 x 25

Motor Type:

Remote Control Included:

TR205D

Ship Carton Height:

10.75

Ship Carton Length:

19.49

Ship Carton Width:

11.42

Ship Weight:

21.23

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

18.89

Airflow Efficiency Low:

1220

Airflow Efficiency Medium:

562

Avg Airflow Efficiency:

418

Avg CFM Energy:

9770

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

6.3 Dia

Canopy Height:

2.55 H

Cap Included:

Yes

Carton Cubic Feet:

1.38

Cartons Per Unit:

Case Height:

10.75

Case Length:

19.49

Case Quantity:

Case Weight Pounds:

21.23

Case Width:

11.42

CEC Uploaded:

Yes

Ceiling To Blade Edge:

18.61

Ceiling To Bottom:

20.61

CFM Low:

6148

CFM Medium:

10513

Compatible Accessories:

CCK8002SLW, DR1-CPSL, DR1SS-18SLW, DR1SS-24SLW, DR1SS-36SLW, DR1SS-48SLW, DR1SS-60SLW, DR1SS-72SLW, SCB1-52

Compatible Blades:

B7998-96BLW, B7998-96SLW

Compatible Controls:

WFR7998

Compatible Wall Controls:

TW306

Country of Origin:

China

CRI:

Current Draw High:

0.55

Current Draw Low:

0.1

Current Draw Medium:

0.3

DOE Classification:

Large Diameter

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Yes

Fan Energy Star:

Housing Diameter:

9.21

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Light Kit Energy Star:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts Low:

Watts Medium:

Watts Per Bulb:

Wet Rated:

Yes

Manufactured By:

Fanimation

Additional Information:

12,965 Cfm On High
18 Watt Led Cct Select Light Kit With Cover And Bulb Included; Set Of (8) Wet Rated Blades With Multiple Finish Options Available (sold Separately)
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Variable Speeds, Light Controls, Sleep Timer, Fresh Air, Safe Exit, Home Away Features
Energy Star Most Efficient 2020
Tr305 Handheld Remote With 23a Battery Included
