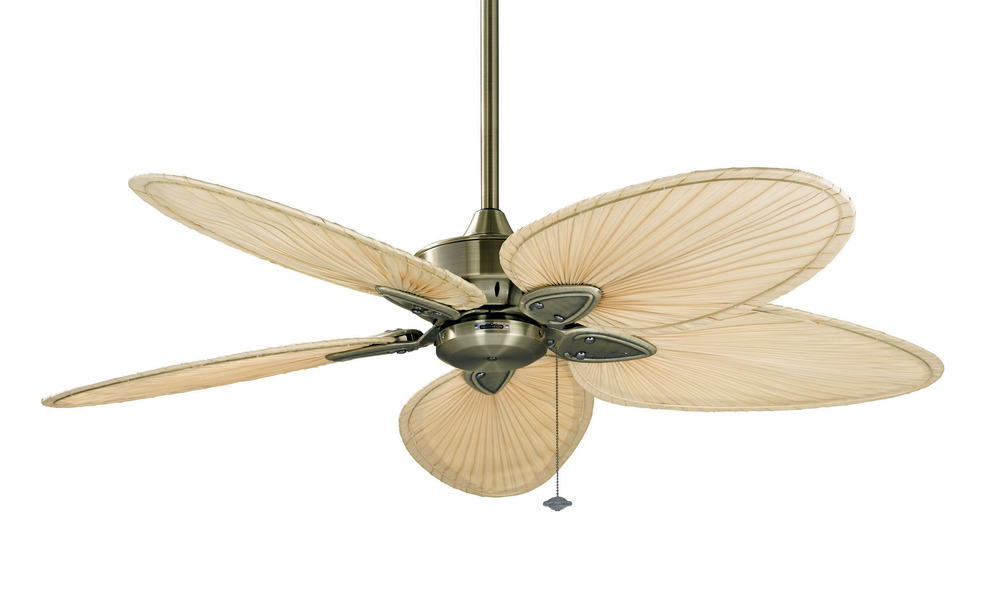

Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Internal #:

5YKC

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Brass , Antique Brass

Style:

Contemporary

Option:

Dry Rated

Voltage:

10-99

Number of Blades:

5 Blades

Subfinish:

Antique Brass

Location Rating:

Dry Rated

Category:

Fan-Uni

Finish:

Antique Brass

Option:

Dry Rated

Family:

Windpointe

Voltage:

120 V

Additional Info:

3 speed AC motor with reverse switch , 3312 CFM on High , Compatible with Fanimation Bluetooth fanSync and most smart home devices (required controls sold sep , Light kit adaptable (sold separately) , Pull Chain Operated , Set of 5 blades included with multiple finish options

Air Flow CFM:

3312

Air Flow Efficiency:

Amperage:

0.41

Blade Finish:

Narrow Oval Natural Palm

Blade Pitch:

Blade Span:

Canopy:

5.75 Dia x 2.57 H

Diameter:

9.06

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Material:

Natural Palm

Motor Fan Speed:

Motor RPM:

110

Motor Size:

188 x 25

Motor Type:

Pull Chain Included:

Yes

Ship Carton Height:

11.93

Ship Carton Length:

24.13

Ship Carton Width:

13.15

Ship Weight:

32.65

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

24.9

Wire Included:

80"

Airflow Efficiency Low:

126

Airflow Efficiency Medium:

Avg Airflow Efficiency:

Avg CFM Energy:

2964

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Natural

Blade Material:

Natural Palm

Blade Reversible:

Blade Sweep:

Canopy Diameter:

5.75 Dia

Canopy Height:

2.57 H

Cap Included:

Carton Cubic Feet:

2.19

Cartons Per Unit:

Case Height:

11.93

Case Length:

24.13

Case Quantity:

Case Weight Pounds:

32.65

Case Width:

13.15

CEC Uploaded:

Yes

Ceiling To Blade Edge:

Ceiling To Bottom:

14.5

CFM Low:

1846

CFM Medium:

2642

Compatible Accessories:

CCK8002AB, DR1-12AB, DR1-18AB, DR1-24AB, DR1-36AB, DR1-48AB, DR1-60AB, DR1-72AB, DR1-CPAB, SCB1-52

Compatible Blades:

B5131DC, B5131RC, B5132DC, B5132RC, B5133CYWA, B5133MOMP, B5133TKMH, B5260WA, B5270WA, B5280WA, B5300WA, B5310WA, B5330WA, B5340WA, B5350WA, B6030CY, B6030MH, B6030MP, B6030TK, B6060WA, B6070WA, B6080WA, B6110WA, B6130WA, B6131DC, , B6131RC, B6132DC, B6132RC, B6133TKMH , BPD1A, BPD4A, BPD4BL, BPD4MW, BPD5A, BPP1BR, BPP1TN, BPP4BR, BPP4GR, BPP4TN, BPW6030CY, BPW6030MH, BPW6030MP, BPW6030TK, BPW6090DNA, ISD1A, ISD1C, ISD2A, ISD4A, ISD4C, ISD7A, ISP1, ISP1RB, ISP2, ISP4, ISP4RB, ISP5,B6132DC, B6132RC, B6133TKMH

Compatible Controls:

BTCR9, BTR9, CR500, CRL4WH, WFR50

Compatible Light Kits:

F301AB, F401AB, F404AB, F423AB, LK112A, LK113WH, LK114AAB, LK114WAB, LK122A, LK124AAB, LK124WAB, LK250, LK260, LK500AB, LKLP101AB, LKLP102AB, LKLP111AAB, LKLP112AAB

Compatible Wall Controls:

CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

Current Draw High:

0.41

Current Draw Low:

0.23

Current Draw Medium:

0.33

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

Dry Rated:

Yes

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

9.06

Included Control Type:

Pull Chain

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Plated

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

110

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts Low:

Watts Medium:

Manufactured By:

Fanimation

Additional Information:

3 Speed Ac Motor With Reverse Switch
3312 Cfm On High
Light Kit Adaptable (sold Separately)
Pull Chain Operated
Set Of 5 Blades Included With Multiple Finish Options
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
